585W Non-DCR Modules

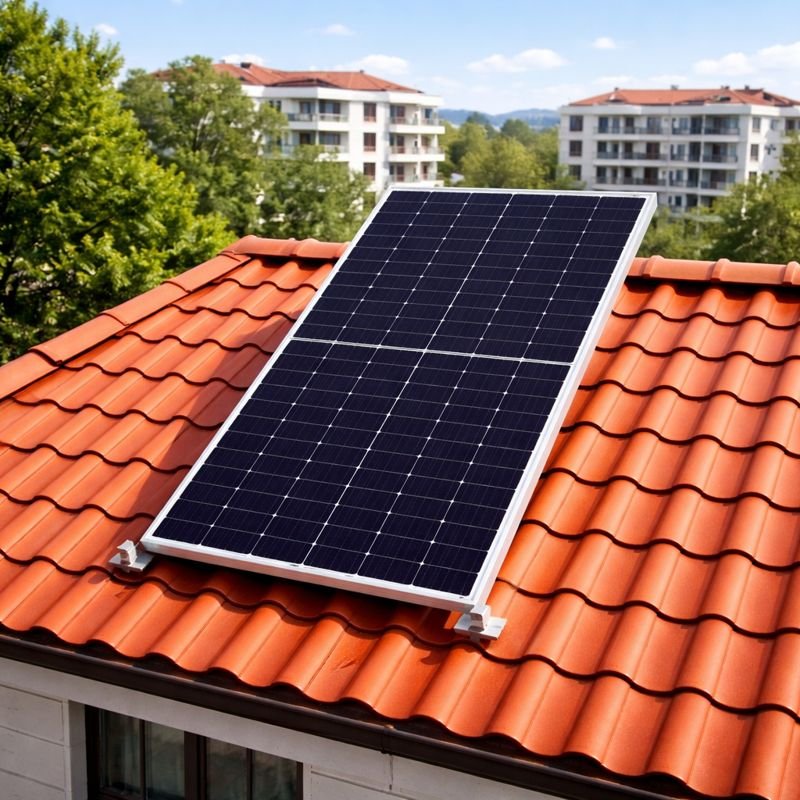

TOPCon solar cells are the innovative technology of the photovoltaic industry with high efficiency, reduced electron recombination through a tunnel oxide layer, and improved durability with less degradation over time. They often come with bifacial capabilities, capturing sunlight from both sides, and perform well in low-light conditions, making them ideal for utility-scale and rooftop installations.
For superior performance and durability.
Reduces light reflection to increase efficiency.
Prevents potential-induced degradation, ensuring long-term reliability.
Optimizes energy production in various conditions.
Ensures best quality panel offerings
| Electrical Data | LUM 24585T144 BI-TS (Bi-Facial with Trans. Backsheet) |
|---|---|
| Peak power, Pmax (Wp) | 585 |
| Maximum Power Voltage Vmp (V) | 44.6 |
| Maximum Power Current Imp (A) | 13.15 |
| Open Circuit Voltage Voc (V) | 54.08 |
| Short circuit current, Isc (A) | 13.74 |
| Module efficiency (%) | 22.69% |
| Maximum System Voltage (V) | 1500V |
| Electrical Characteristics with different rear side power gain (Reference 585 Wp Front) | LUM 24585T144 BI-TS (Bi-facial with Trans. Backsheet) | |||
|---|---|---|---|---|
| Bi-Facial Gain | 10% | 15% | 20% | 25% |
| Peak power Pmax (Wp) | 643.00 | 672 | 702 | 731 |
| Maximum Power Voltage Vmp (V) | 44.60 | 44.60 | 44.60 | 44.60 |
| Maximum Power Current Imp (A) | 14.42 | 15.07 | 15.74 | 16.39 |
| Open Circuit Voltage Voc (V) | 53.93 | 53.90 | 53.95 | 53.92 |
| Short Circuit Current Isc (A) | 15.11 | 15.8 | 16.49 | 17.18 |
| Module Efficiency (%) | 24.78% | 25.94% | 27.11% | 28.26% |
| Mechanical Data | LUM 24585T144 BI-TS (Bi-facial with Trans. Backsheet) |
|---|---|
| Cell Type | TOPCON |
| No. of Cells | 144 |
| Rated Module Voltage (V) | 24 |
| Maximum Series Fuse Rating | 25A |
| Module Dimensions (mm) | 2278 x 1134 x 35 |
| Module Weight (KG) | 28 |
| IP Rating | IP 67 |
| Cable | 300 mm length cables |
| Frame | Silver Anodized aluminium alloy |
| Glass | 3.2 mm thick high transmission low iron tempered glass, AR coated |
| Cell Encapsulant | High quality encapsulant |
| Backsheet | Transparent |
| Maximum surface load capacity | 5400 Pa |
| Application Class | Class A (Safety Class II) |
| Temperature Co-efficients (Tc) and permissible operating conditions | LUM 24585T144 BI-TS (Bi-facial with Trans. Backsheet) |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Temp coefficient of Open Circuit Voltage | -0.33%/°C |
| Temp coefficient of Short Circuit Current | +0.06%/°C |
| Temperature coefficient of Power | -0.39%/°C |
