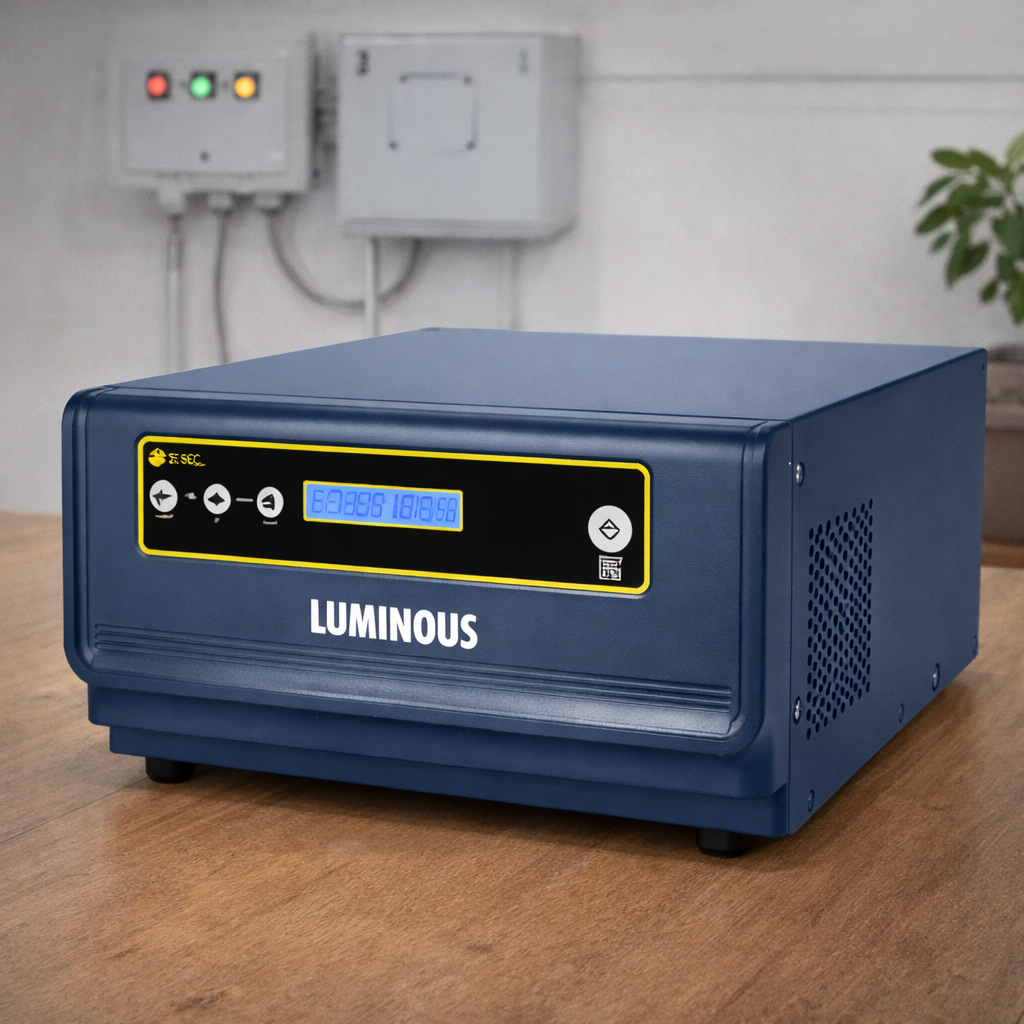

NXG Pro Inverters
With Proven MPPT Technology
NXG PRO is an intelligent solar inverter which comes with in-built MPPT technology helping in converting 30% more power from solar panels as compared to PWM charge controllers.
With Proven MPPT Technology
NXG PRO is an intelligent solar inverter which comes with in-built MPPT technology helping in converting 30% more power from solar panels as compared to PWM charge controllers.
Solar, Solar+Grid, Grid+Solar
Connect Solar Panels equivalent to Solar Inverter’s VA ratings
Gives you the flexibility to connect either 12V or 24V solar panels as per your need
Charges even at 90V making it ideal for areas having low voltage problem
View important parameters such as daily solar generation data, battery status, alerts, etc.
| Solution | Panel Connection Combination (Series-Parallel) | Approx. Roof Top Area Required (Sq. ft.) | ||
|---|---|---|---|---|
| Solar Inverter | Solar Battery | PV Panel Watt | ||
| NXG PRO 1KVA / 12V | 150Ah x 1 | 550Wp x 2 Nos. | 2 (P) | 120 |
| NXG PRO 1KVA / 24V | 150Ah x 2 | 550Wp x 2 Nos. | 2 (P) | 120 |
| Model Name | NXG PRO 1KVA / 12V | NXG PRO 1KVA / 24V |
|---|---|---|
| Nominal Battery Voltage (Vdc) | 12V | 24V |
| Capacity (kVA) | 1 kVA | |
| Output Waveform | Pure Sine Wave | |
| SOLAR PHOTOVOLTAIC INPUT | ||
| Charge Controller Type | MPPT | |
| Maximum PV power | 1000Wp | |
| Input Voltage range (Voc) | 35V-55V | |
| GRID INPUT | ||
| Operating Voltage Range | 90V-290V | |
| GRID OUTPUT | ||
| No Load Output | 230V +/- 10V | |
| Output frequency battery mode | 50 Hz +/- 0.5Hz | |
| Inverter Efficiency | >80% | |
| USER SELECTABLE FROM FRONT SWITCH | ||
| Mode Selections | Solar / Solar+Grid / Grid+Solar | |
| Battery Type Selections | Tubular / SMF / Flat | |
| No Load Shutdown | Enable / Disable | |
| MAINS CHARGING CURRENT | ||
| Solar Mode | 0A* | |
| Solar + Grid Mode | 15A±2A | |
| Grid + Solar Mode | 20A±2A | |
| BATTERY | ||
| No. of Batteries | 1 | 2 |
| Battery Charging Current from Solar | 30A±2A | |
| Battery Charging Current from Grid | 0A / 15A / 20A | |
| Type of Battery Supported | Tubular / SMF / Flat | |
| PROTECTIONS | ||
| Overload | >102% | |
| Protections | Short circuit, Overload, Over temperature, Low Battery, No Load Shutdown | |
| Alarms | Battery low pre-alarm, Battery low, Short-circuit, Overload, Faults | |
| LCD DISPLAY | ||
| LCD Display Messages | Mains Available, Power Saving, Solar Current, Solar Voltage, Solar Power, System On, Grid Charging, Low Battery, Overload, No Load Shutdown | |
| ENVIRONMENT | ||
| Ambient operating temperature | 0-45°C | |
| Storage Temperature | 0-50°C | |
| Humidity | Up to 95% (Non-Condensed) | |
| Cooling system | Forced Cooling | |
| STANDARD COMPLIANCE | ||
| Certifications | BIS certified as per IS/IEC standards | |
| GENERAL | ||
| Net weight (Kg) | 14.1 kg | |
| Gross weight (Kg) | 15.5 kg | |
| Dimensions LxWxH (mm) | 356 x 320 x 138 mm | |
