Perfect Blend of Safety and Efficiency

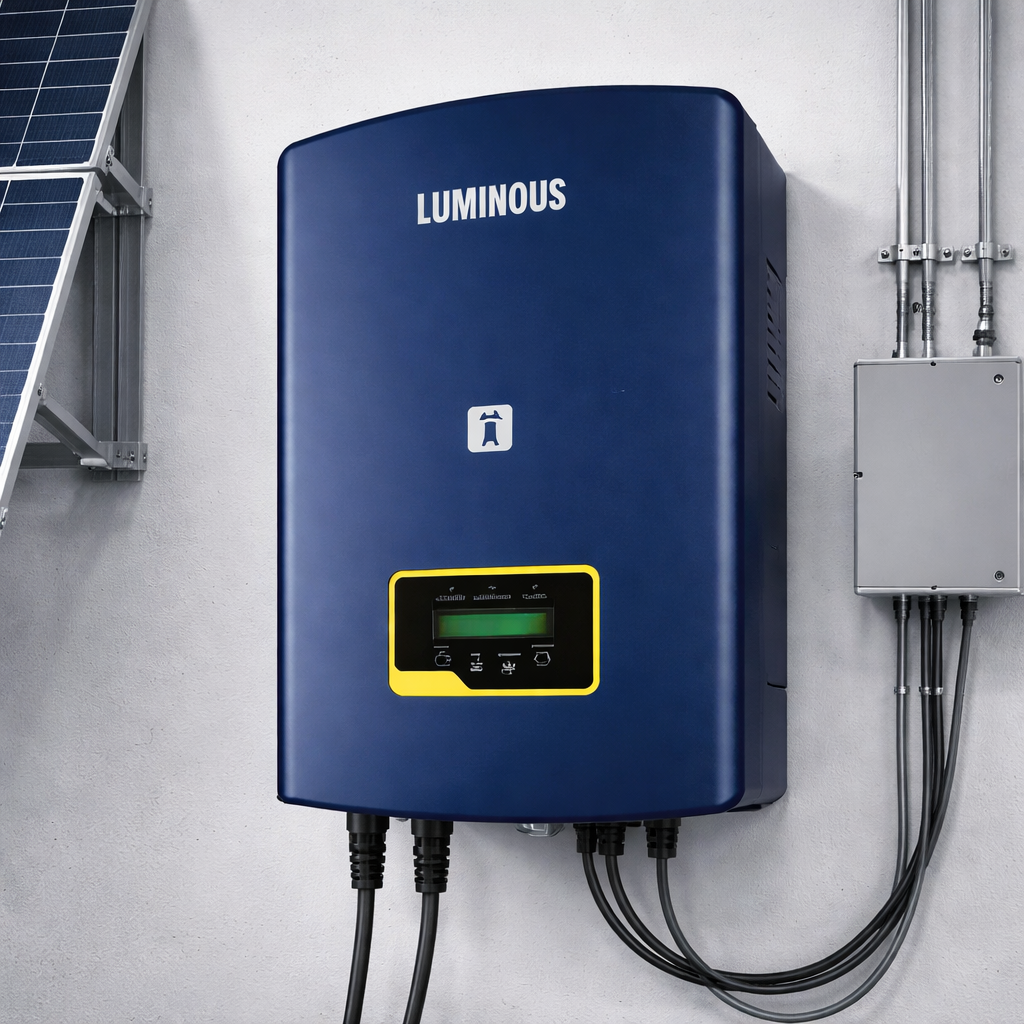

The NXi range from Luminous is available in single and three phase configurations. With best-in-class reliability and compliance to safety standards, the inverters are available in capacities from 2kW to 110 kW.
MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.
Disconnects the inverter from grid during power failure preventing any electrical shock to the linemen at work.
Allows IV curve scanning for each panel string & identify fault or abnormality (25kW & above models)
Allows monitoring at each individual string level to ensure consistent output of system (25kW & above models)
Helps in providing sufficient reactive power required by grid & produces 60% of reactive power of its rated max output (50kW & above models)
| Solution | No. of MPPT | Panel Connection Combination per MPPT (Series-Parallel) | Approx. Roof Top Area Required (Sq. ft.) | |
|---|---|---|---|---|
| GTI | PV Panel Watt | |||
| NXI 2kW | 550Wp x 4 Nos. | 1 | 4 (S) | 240 |
| NXI 3kW | 550Wp x 8 Nos. | 1 | 8 (S) | 480 |
| NXI 4kW | 550Wp x 10 Nos. | 2 | 10 (S) | 600 |
| NXI 5kW | 550Wp x 12 Nos. | 2 | 12 (S) | 720 |
| NXI 6kW | 550Wp x 16 Nos. | 2 | 16 (S) | 960 |
| NXI 8kW | 550Wp x 20 Nos. | 2 | 20 (S) | 1200 |
| NXI 10kW | 550Wp x 26 Nos. | 2 | 26 (S) | 1560 |
